shenzhen 80w integrated 395nm high power uv led diodes for uv printer
Specifications:
Electrical / Optical Characteristics at TA=25℃
|
Parameter
|
Symbol
|
Min
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Luminous Flux
|
Φ
|
200
|
220
|
240
|
Lm
|
IF =3500mA
|
|
Viewing Angle
|
2θ1/2
|
110
|
120
|
130
|
deg
|
IF =3500mA
|
|
Wavelength
|
WD
|
395
|
398
|
400
|
nm
|
IF =3500mA
|
|
Forward Voltag
|
vF
|
30
|
33
|
36
|
V
|
IF =3500mA
|
|
Reverse Current
|
IR
|
|
|
10
|
uA
|
VR = 5V
|
Absolute Maximum Ratings at TA=25℃
|
Parameter
|
Maximum Rating
|
|
Power Dissipation
|
80W
|
|
Peak Forward Current(1/10 Duty Cycle, 0.1ms
Pulse Width)
|
3500mA
|
|
Continuous Forward Current
|
2800mA
|
|
Derating Linear From 30℃
|
0.07mA/℃
|
|
Reverse Voltage
|
5V
|
|
Operating Temperature Range
|
-20℃ to + 80℃
|
|
Storage Temperature Range
|
-30℃ to + 100℃
|
|
Lead Soldering Temperature
[1.6mm(.063") From Body]
|
260℃ for 5 Seconds
|

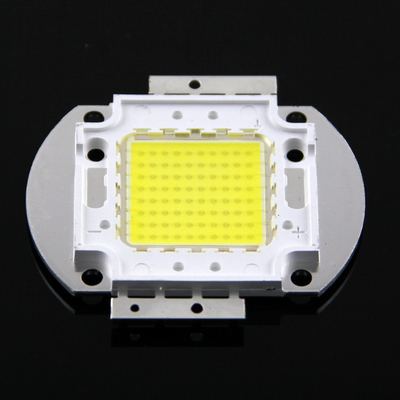

Product photos:
Main selling products:
High Power led: From 1 watt led to 400 watt Led in all colors.
Led diodes: round led, flat top led, concave led, nipple led, straw hat led, bullet led, oval led,
piranha led, square led from 2mm to 10mm.
SMD LED: 2835, 5050, 3528, 1206, 0603, 020 etc.
Led uv nail lamp: from 6w to 60w led uv nail lamp.
Led street light: from 50w to 330w fashion led street lights
Led grow light: all kinds of power and shape are available
Led aquarium light: all kinds of power available
Color available: red, green, blue, yellow, white, UV, IR, RGB, bicolor, etc. Available
Wavelength available: from 265nm to 940nm.
shipment and payment:
Hanhua company information:
Factory area: 5000 square meter
Total revenue:$ 13000000
Number of employee: 200
Company information: high standard dust free workshops and advanced entire automated electron system: ASM from USA, dispensing system from Japan, die bonding from Singapore etc. Capacity: 65000000pieces per month from high power led, 85000000pieces per month from dip led, 95000000pieces per month from smd led, 10000pieces per month from integrated led.
Our team and partners:
With a very professional sales team, and won international reputation and successfully established good relations with customers.
Our business:
Our business quickly expands to global markets and the main markets are Europe, North America, Australia, Middle east, and Southeast Asia, and Hongkong, and China mainland as well.
