700mA 3.4-3.8V 3W 380nm UV high power led diodes for led nail lamp
Specification:
Absolute maximum ratings (Ta=25°C)
|
Item
|
Symbol
|
Absolute Maximum Rating
|
Unit
|
|
Forward Current
|
IF
|
850
|
mA
|
|
Peak Forward Current
|
IFP
|
700
|
mA
|
|
Reverse Voltage
|
VR
|
5
|
V
|
|
Power Dissipation
|
PD
|
|
mw
|
|
Electrostatic discharge
|
ESD
|
10000
|
V
|
|
Operation Temperature
|
TOPR
|
-25～+120
|
℃
|
|
Storage Temperature
|
TSTG
|
-40～+80
|
℃
|
|
Lead Soldering Temperature
|
TSOL
|
330 ℃ for 5sec Max.
|
Electro-optical characteristics (Ta=25°C)
|
Item
|
Symbol
|
Condition
|
Min
|
Typ
|
Max
|
Unit
|
|
Forward Voltage
|
VF
|
IF=350mA
|
3.4
|
3.6
|
3.8
|
V
|
|
Reverse Current
|
IR
|
VR=5V
|
0
|
2
|
5
|
uA
|
|
Viewing Angle
|
2θ1/2
|
IF=350mA
|
|
|
140
|
deg
|
|
Luminous Flux
|
Φ
|
IF=350mA
|
3
|
/
|
4
|
lm
|
|
Spectral LineHalf-Width
|
|
IF=350mA
|
375
|
380
|
385
|
nm
|
|
Temperature coefficient
|
|
IF=350mA
|
-
|
-2
|
-
|
mw/℃
|
|
Thermal Resistance Junction To Board
|
|
IF=350mA
|
-
|
12
|
-
|
℃/W
|
|
Recommend Forward Current
|
IF(rec)
|
IF=350mA
|
|
|
350
|
mA
|
Notes:1.Work absolute ratings Ta=25℃
2.Tolerance of measurement of forward voltage±0.1V
Applications:
For All general Indoor lighting and outdoor lighting:
|
Led Spotlight
|
under water lamp
|
Led ceiling light
|
Led street light
|
Led bulb
|
|
under ground light
|
led fluorescent tube
|
Led surgery light
|
Led garden light
|
Down light
|
|
Led flood light
|
Led decorative light
|
Led desk light
|
Led dancing light
|
Ceiling light
|
|
plant growing light
|
high power led bay light
|
Led aquarium light
|
Led tunnel light
|
Candle light
|
|
Led projector
|
LED Flash light
|
led sign board
|
Led traffic light
|
car head light
|
Advantages:
- Professional led manufacturer
- Experience technical staff
- Quality control
- Competitive price
- Big order with free shipping
- Small order available
- Top quality raw material
- International approval
- Prompt delivery
- Long warranty
-

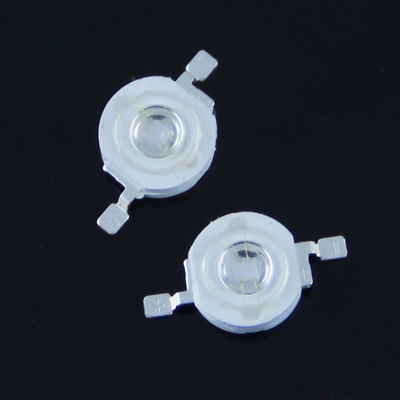

Product photos:
Main selling products:
High Power led: From 1 watt led to 400 watt Led in all colors.
Led diodes: round led, flat top led, concave led, nipple led, straw hat led, bullet led, oval led,
piranha led, square led from 2mm to 10mm.
SMD LED: 2835, 5050, 3528, 1206, 0603, 020 etc.
Led UV nail lamp: from 6w to 60w led UV nail lamp.
Led street light: from 50w to 330w fashion led street lights
Led grow light: all kinds of power and shape are available
Led aquarium light: all kinds of power available
Color available: red, green, blue, yellow, white, UV, IR, RGB, bi-color, etc. Available
Wavelength available: from 265nm to 940nm.
About us:
Factory area: 5000 square meter
Total revenue:$ 13000000
Number of employee: 200
Company information: high standard dust free workshops and advanced entire automated
electron system: ASM from USA, dispensing system from Japan, die bonding from Singapore
etc. Capacity: 65000000pieces per month from high power led, 85000000pieces per month
from dip led, 95000000pieces per month from smd led, 10000pieces per month from integrated led.
