Single Sided Flexible Printed Circuit Design 0.5 OZ Copper With Acrylic Adhesive

چین Single Sided Flexible Printed Circuit Design 0.5 OZ Copper With Acrylic Adhesive تامین کننده

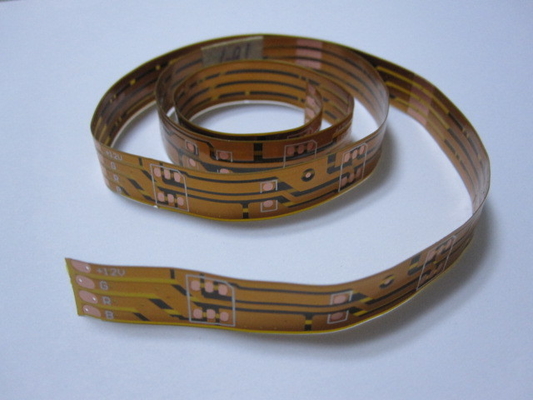

تصویر بزرگ :  Single Sided Flexible Printed Circuit Design 0.5 OZ Copper With Acrylic Adhesive

جزئیات محصول:

Place of Origin: China
نام تجاری: HD-PCB
گواهی: UL,ISO9001,TS16949.
Model Number: Flexible printed circuit-3

پرداخت:

Minimum Order Quantity: No MOQ
قیمت: Negotiation
Packaging Details: Packed in antistatic bag
Contact Now
توضیحات محصول جزئیات





Single Sided Flexible Printed Circuit Design 0.5 OZ Copper With Acrylic Adhesive ​




Quick Details


PCB Type:

Flexible Printed Circuit

Layer :

 2 layer

Min .Line Width/Space:

3mil/3mil

Min. Via Diameter:

0.3mm

Finish Thickness:

0.1mm

Surface Finish:

ENIG

Size:

60*100MM

Material:

PI

Color:

Gold

Application:

Mobile



Description


Shenzhen Hengda Electronics is a leading manufacturer of precision Flexible Printed Circuit (FPC) for customers worldwide. We specialize in quick-turn FPC prototypes to FPC mass productions, provide high quality and cost effective turn key solutions to our customers.

Single Sided Flexible Printed Circuit Design 0.5 OZ Copper With Acrylic Adhesive



This table lists the standard flex circuits materials and material thicknesses that we may have daily available. If  the material or thickness you require is not listed, consult us. We have full specification of each material available for your required.

FPC Materials


Material Function

Material Type

Options

Flexible Insulator

Polyimide(PI)

1/2 mil to 5 mil

Conductor

Copper
 *Rolled Annealed(RA)  *Electrodeposited(ED)

1/4 oz(0.009mm)                                 to 10 oz(0.356mm)

Rigid Substrate  (Rigid-Flex)

FR-4

3 mil to 125 mil

Adhesive

Acrylic Adhesive

1/2 mil to 3 mil

Adhesiveless Material also available

Stiffener

FR-4                               Polyimide(PI)               Polyester(PET)             Adhesivetape   Steel/Aluminum/Copper

3mil to 125 mil                                     1/2 mil to 5mil                                     1 mil to 15mil                                        6 mil

Solder Mask

Polyimide(PI)                   Photoimageable Coverlay  Liquid Photoimageable Covercoat

1/2 mil to 5 mil                                     1 mil to 2.5 mil Liquid Typically for surface mount and dense applications

Surface Finish Options

Tin

Immersion Tin

Gold

Electrolytic Nickel Immersion Gold     Electrolytic Hard Nickel /Gold       Electrolytic Soft Nickel/Gold

Silver

Immersion Silver

OSP

OSP

Shielding

 Solid  Copper          Crosshatched Copper  Conductive Silver Aluminum

Required To Limited Electromagnetic and/or Electrostatic




FPC Standard Structure

Single Sided Flexible Printed Circuit Design 0.5 OZ Copper With Acrylic Adhesive


Technical Capabilities


Layer (Max)

Up to 8 Layers

Board Size (Max)

500*1000mm

Outer tolerance

a+/-0.2mm Hand Trim
b+/-0.25mm steel Rule Dies
c+/-0.07mm Punch and Dies
d+/-0.025 Laser Cut

Hole

Diameter(Min)

0.1mm(Finished)



Diameter Tolerance

a.Plating Through Holes+/-0.08mm  b.Non-Plating Through Holes+/-0.05mm



Drill Position Tolerance

+/-0.076mm

Conductor

Width Tolerance

+/-15%

Spacing(Min)

2mil

Spacing Tolerance

+/-15%

Pad

Pad(Non-Wiring)

>=0.04mm+ Hole

Pad(Wiring)

>=0.3mm+Hole

Coverlay

Coverlay to Pad(Min)

100um

Coverlay to Conductor (Min)

100um

Coverlay Width(Min)

250um

Stiffener holes

>=0.25mm+Access hole




FPC Application

Single Sided Flexible Printed Circuit Design 0.5 OZ Copper With Acrylic Adhesive



Testing Procedures

We perform multiple quality assurance procedures before shipping out any PCB board. These include:

  • Visual Inspection
  • Flying probe
  • Bed of nails
  • Impedance control
  • Solder-ability detection
  • Digital metallograghic microscope
  • AOI (Automated Optical Inspection)


Quick turn lead times

For HDI PCB production, we can provid 7 to10 days turn around times. For multilayer PCBs, the fastestturnaround time depends on the number of layers and quantity.

Service Guarantee

We make sure to serve each customer professionally, truthfully and friendly to the best of our ability.   We will gladly re-work your project if your project isn’t 100% satisfactory.


Get a quick quote now

By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
